Modifying a Pipeline While Preserving its State

Enterprise-only feature

This feature is only available in Feldera Enterprise Edition.

Overview​

Feldera supports incremental pipeline modification through a feature called bootstrapping. This allows you to evolve your SQL pipelines by adding, removing, or modifying table and view definitions without having to discard the pipeline's existing state and re-ingest all historical data from scratch.

When you modify a pipeline:

  • New and modified views are computed from existing pipeline state
  • Views not affected by the change continue using their existing state
  • Input data does not need to be re-ingested (unless table schemas change)
  • New and modified connectors are added to the pipeline

Introduction​

Feldera incrementally processes changes to input data. But what happens when the program itself needs to change, e.g., the user would like to add, remove, or modify a view definition? Feldera is able to handle such changes incrementally as well by only recomputing the modified view and any views derived from it. Whenever possible, it uses existing state in tables and internal indexes maintained by the incremental view maintenance engine as inputs to evaluate affected views.

This process of building new or modified views from existing state in the pipeline is called bootstrapping. Bootstrapping allows you to evolve your SQL pipeline without having to re-ingest all historical data from scratch.

How bootstrapping works​

In this section we describe steps involved in modifying a pipeline while preserving its state.

1. Stop the pipeline​

The pipeline must be stopped before it can be modified. During the /stop operation, the state of the pipeline is checkpointed in storage. Alternatively, if the pipeline crashes or gets force-stopped, its recent state is preserved in the last periodic checkpoint, as long as checkpointing is enabled. This state will later be used to bootstrap the modified pipeline.

2. Modify the pipeline​

The user modifies the pipeline by making arbitrary changes to its SQL code. This way many changes across multiple tables and views can be performed at the same time. This is particularly useful when working with nested views, where a change to one of the views, such as adding a new column, may require updates to all downstream views that depend on it.

3. Restart the pipeline​

When a modified pipeline is restarted, it performs the following operations:

  1. Opens its latest checkpoint if one exists.

  2. Compares the checkpointed program with the new version being started. If the program has not been modified since the checkpoint was made, resumes the pipeline from the checkpoint.

  3. If the program has been modified, the behavior depends on the bootstrap_policy argument passed to the pipeline on startup (see API section below):

    • bootstrap_policy=await_approval (default) - the pipeline stops in the AwaitingApproval state. Its deployment_runtime_status_details property (returned by the pipeline status endpoint) lists tables, views, and connectors affected by the changes. At this point the pipeline is paused until the user signals their intention. The user can either approve the changes by calling the /approve API or terminate the pipeline using /stop?force=true.

    • bootstrap_policy=allow - the pipeline proceeds to bootstrap modified views as described in the Bootstrapping section below.

    • bootstrap_policy=reject - the pipeline is stopped with an error message listing pipeline modifications. Its checkpointed state is preserved. The user can choose to undo modifications or change bootstrap_policy and restart the pipeline again.

Bootstrapping​

If pipeline modifications have been approved, the pipeline goes into the Bootstrapping state and performs the following actions:

  1. Discards any state that has been invalidated, such as state that belongs to deleted or modified views.

  2. The state of any new or modified tables is truncated; all connectors attached to these tables are reset to their initial state. Once bootstrapping completes, these tables will start empty and will be populated with data received from input connectors.

    • A table is considered modified if types, names or the order of its columns have changed in any way, its primary key constraint has changed, or its materialized or append_only properties were added or removed.

    • A table is NOT considered modified if only its connector definitions have changed.

    • Any views derived from modified tables are considered modified. During bootstrapping, these views will be evaluated against the empty table. After bootstrapping completes, the views will be incrementally updated as the table is populated with data from the input connectors.

  3. Evaluates new and modified views based on existing state inside the pipeline and outputs the complete contents of these views to all attached output connectors. This is similar to how the pipeline outputs data while ingesting historical data during regular backfill.

    • A view is considered modified if its query was altered in any way or if its MATERIALIZED attribute was added or removed.

    • A view is NOT considered modified if only its connector definitions have changed.

Data Sink Cleanup Required

The pipeline does not output retractions for the old contents of modified views. You must clear any connected data sinks before approving the modified pipeline to avoid duplicate or stale data.

The pipeline does not ingest any inputs during bootstrapping. Once bootstrapping completes, the pipeline moves to the Running state, where it resumes ingesting and incrementally processing data from input connectors. Input connectors that were not modified in the new version of the pipeline and whose tables have not changed resume ingestion from their checkpointed position in the input stream; other input connectors will start from the initial state specified in their configuration.

Silent bootstrapping​

By default, bootstrapping sends the complete contents of new and modified views to their output connectors. This is useful when the connected sink must be rebuilt from the bootstrapped view contents, but it can produce duplicate or stale records if the sink already contains the correct data. This is the case for example when bootstrapping is triggered by a Feldera upgrade (see below).

Set silent_bootstrap=true to bootstrap the pipeline with output connectors disabled for the duration of bootstrapping. The pipeline still evaluates the new and modified views and updates its internal state. Output connector progress also advances through the bootstrapped input records, but no bootstrapped output records are transmitted to external sinks. Once bootstrapping completes and the pipeline enters Running or Paused, output connectors resume normal operation and emit subsequent incremental changes.

Use silent bootstrapping when the external sink already has the desired contents. Do not use it if the sink needs to receive the full contents of newly added or modified views during bootstrap.

Caveats and limitations​

Caveat 1: Feldera runtime upgrade can modify the pipeline​

Recompiling a pipeline with a new version of Feldera can modify its query plan and trigger bootstrapping even if its SQL code has not changed.

Feldera pipelines are compiled and executed using the SQL runtime associated with the installed version of the Feldera platform. After a Feldera upgrade, existing pipelines continue using the runtime with which they were originally compiled; however once the pipeline is recompiled, either via the /update_runtime request or by editing its SQL code, it will use the SQL runtime associated with the current version of the Feldera platform. This new runtime may generate a slightly different query plan for the same SQL tables and views, which will require going through the bootstrapping process. The affected views will be recomputed from scratch and streamed to the output connectors even though their contents haven't changed.

If this is undesirable, use one of the following methods to avoid updating the SQL runtime of a pipeline:

  1. Avoid updating pipeline's runtime. As long as you don't invoke /update_runtime or modify the pipeline's code, it will continue running with its original runtime.

  2. Pin the pipeline to a specific runtime version using the runtime_version property.

  3. Use silent bootstrapping to avoid sending duplicate data to output connectors during bootstrapping.

Caveat 2: Starting from an S3 checkpoint​

Normally, when restarting, a pipeline continues from the checkpoint taken at the point when the pipeline was stopped, containing the pipeline's latest state. If the pipeline crashed or was force-stopped, it will pick up the last periodic checkpoint, if any.

Alternatively, the user can start the pipeline from a checkpoint in an S3-compatible object store, created using the S3 sync feature. This checkpoint may have been created by an older version of the same pipeline or even by a different pipeline. This situation is handled in the same way: the pipeline computes a diff between the current and the checkpointed query plan, bootstraps any new and modified views and clears any tables that are not part of the checkpoint.

Caveat 3: Views that have not been modified may require bootstrapping​

The Feldera SQL compiler performs some global optimizations across multiple views. Modifying or removing one of the views can affect these optimizations, potentially changing the query plan for other views, not directly affected by the change.

Limitation 1: Tables must be materialized​

Bootstrapping relies on existing pipeline state to initialize new and modified views. Materializing all tables in the program by declaring them with 'materialized' = 'true' ensures that the pipeline can be bootstrapped after arbitrary changes from this materialized state.

A program where not all tables are materialized may fail to start from a checkpoint and require clearing the pipeline's state and restarting the pipeline from scratch instead.

Limitation 2: Bootstrapping does not work with LATENESS​

Programs with LATENESS annotations currently cannot be bootstrapped. These annotations are used by the query engine to discard state that can no longer affect any future updates to any view. However, if the modified program contains new views that may depend on the discarded data, they cannot be computed.

We currently do not implement the analysis needed to detect such changes and instead take the more coarse-grained approach of simply rejecting changes to pipelines with LATENESS. Such pipelines must be backfilled from scratch after any change by clearing their state before restarting.

Limitation 3: Table evolution is not yet supported​

Adding, removing or renaming a table column will clear the table's state and require the table to be ingested from scratch.

Limitation 4: The pipeline does not detect changes to UDFs​

Feldera currently assumes that a UDF whose name and signature have not changed does not change its behavior. If the user modifies the implementation of a UDF without changing its signature, they need to either clear the state of the pipeline or rename the UDF to trigger the bootstrapping of any views that depend on the modified UDF.

API​

In this section we describe the REST API elements related to bootstrapping. All of this functionality is also available via the Python SDK and the fda CLI tool.

  • The bootstrap_policy argument to the /start endpoint. This argument specifies how the pipeline should behave when the checkpointed version of the program differs from the current version. The supported values are await_approval, allow, and reject. The default value is await_approval. See the Restart the pipeline section above for details.

  • The silent_bootstrap argument to the /start endpoint and /approve endpoint. Set this argument to true to suppress output connector records during bootstrapping, as described in Silent bootstrapping.

  • Two runtime states reported by the pipeline status endpoint in the deployment_runtime_status field:

    • AwaitingApproval - When starting the pipeline with bootstrap_policy=await_approval, if the pipeline requires bootstrapping, it will stop in the AwaitingApproval state waiting for the user to approve the changes. While in this state, the deployment_runtime_status_details field lists added, modified, and removed tables, views, and connectors in JSON format. The pipeline exits this state when the user either approves the pipeline via the /approve API or force-stops the pipeline with /stop?force=true.
    • Bootstrapping - In this state the pipeline evaluates new and modified views. Once bootstrapping completes, the pipeline automatically moves into the Running or Paused state.

  • The /approve endpoint. Invoking this endpoint transitions the pipeline from the AwaitingApproval to Bootstrapping state. Use /approve?silent_bootstrap=true to approve the changes while suppressing output connector records produced during bootstrapping.

WebConsole​

Bootstrapping is also supported via the WebConsole. The WebConsole always starts pipelines with bootstrap_policy=await_approval. If the pipeline has changed since the last checkpoint, it shows a dialog with the list of detected pipeline changes where the user can approve the changes or stop the pipeline.

How different types of changes are handled​

This section describes how the bootstrapping process handles different types of changes to your pipeline.

Views​

Adding a view​

New views are evaluated during bootstrapping; their full contents are sent to all attached output connectors.

Modifying a view​

A view is modified when the user changes its SQL definition or as a side effect of a change to an upstream view or a runtime upgrade. The old state of modified views is discarded; the view is evaluated from scratch, and its full contents are sent to all attached output connectors.

Removing a view​

The view, all of its connectors, and all internal indexes used to maintain the view incrementally are discarded.

Tables​

Adding a table​

New tables are created empty. Note that renaming an existing table is treated as deleting the old table and creating a new one.

Modifying a table​

Modifying a table clears the state of the table and all views that depend on it during bootstrapping. All table connectors are reset to their initial states.

Removing a table​

All state of the deleted table is discarded.

Connectors​

Adding a connector​

  • New input connectors are initialized according to their configuration. They are activated after bootstrapping completes and the pipeline moves to the Running state.

  • New output connectors attached to new or modified views are activated during bootstrapping. They receive the complete contents of the view computed during bootstrapping.

  • New output connectors attached to existing views are activated after the pipeline moves to the Running state. These connectors only receive new changes to the views.

Feldera uses connector names to uniquely identify connectors within the scope of a table or view. Renaming a connector is treated as deleting the old connector and adding a new connector with an identical configuration.

We recommend explicitly naming all connectors. Anonymous connectors are automatically assigned names based on the order of their declaration. Such automatic names are less stable than explicitly assigned names and can cause spurious changes to be detected in modified pipelines.

Modifying a connector​

  • Modified input connectors are initialized according to the new configuration. Any checkpointed state (e.g., the latest offset ingested by the connector) is discarded and the connector is reset to its initial state. Any data previously ingested by the connector is not affected.

  • Modified output connectors are initialized according to the new configuration.

Removing a connector​

When an input connector is removed, any records previously ingested by the connector remain in the table.

Example​

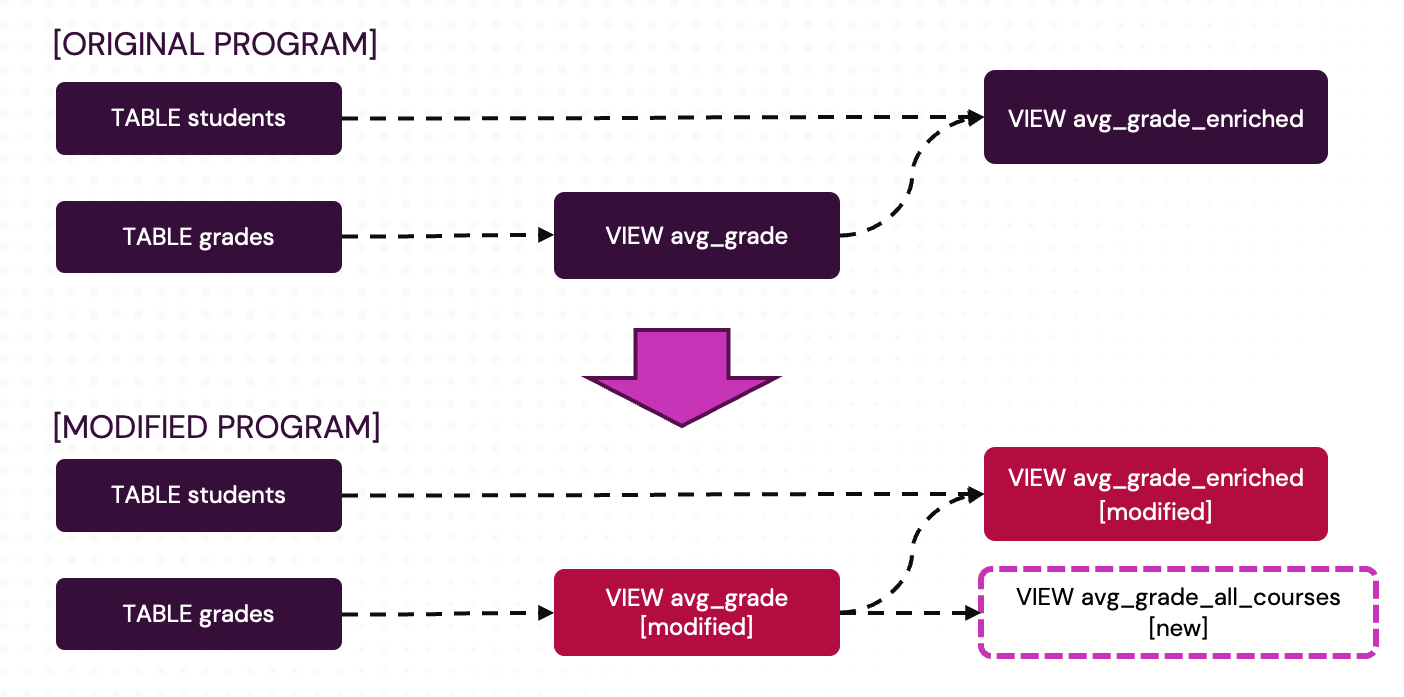

In this example, we use the Python SDK to demonstrate how to modify a running pipeline and bootstrap the changes. We start with a pipeline that tracks student grades and computes average grades per class within a specific date range. Then we transform the pipeline by:

  1. Extending the date range in the avg_grade view, which causes the avg_grade_enriched view to change as well.

  2. Adding a new avg_grade_all_courses view that computes the overall average across all courses.

Example: modifying and bootstrapping a pipeline

from decimal import Decimal
from feldera.enums import BootstrapPolicy, PipelineStatus
from feldera.pipeline_builder import PipelineBuilder
from feldera.runtime_config import RuntimeConfig
from tests import TEST_CLIENT, enterprise_only
from .helper import (
    gen_pipeline_name,
)

# SQL program parameterized by start and end dates.
def gen_sql(start_date, end_date):
    return f"""create table students (
  id bigint,
  name varchar
) with (
  'materialized' = 'true'
);

create table grades (
  student_id bigint,
  class string,
  grade decimal(5,2),
  class_date date
) with (
  'materialized' = 'true'
);

-- Average grade per student per class over a fixed date range.
create view avg_grade as
select
  student_id,
  class,
  AVG(grade) as class_avg
from grades
where
  class_date >= date '{start_date}' and class_date <= date '{end_date}'
group by student_id, class;

-- Similar to avg_grade, but contains student name instead of Id.
create materialized view avg_grade_enriched as
select
  name as student_name,
  class,
  class_avg
from
  avg_grade join students on avg_grade.student_id = students.id;
"""

# Create and start the pipeline.
pipeline = PipelineBuilder(
    TEST_CLIENT,
    pipeline_name,
    sql=gen_sql("2025-09-01", "2025-12-15"),
).create_or_replace()

pipeline.start()
assert pipeline.status() == PipelineStatus.RUNNING

# Feed some input data.
pipeline.execute("insert into students values (1, 'Alice'), (2, 'Bob')")
pipeline.execute("""insert into grades values
(1, 'algebra', 97, '2025-09-15'),
(1, 'physics', 89, '2025-11-15'),
(2, 'algebra', 85, '2025-10-22'),
(2, 'physics', 93, '2025-12-05'),
(1, 'algebra', 95, '2026-01-15'),
(1, 'physics', 87, '2026-03-15'),
(2, 'algebra', 98, '2026-04-22'),
(2, 'physics', 91, '2026-05-05')
""")

# Validate outputs.
result = list(pipeline.query("SELECT * FROM avg_grade_enriched order by student_name, class"))
assert result == [
    {"student_name": "Alice", "class": "algebra", "class_avg": Decimal("97.00")},
    {"student_name": "Alice", "class": "physics", "class_avg": Decimal("89.00")},
    {"student_name": "Bob", "class": "algebra", "class_avg": Decimal("85.00")},
    {"student_name": "Bob", "class": "physics", "class_avg": Decimal("93.00")},
]

pipeline.stop(force=True)

additional_view = """
create materialized view avg_grade_all_courses as
select
  student_id,
  avg(class_avg) as avg
from avg_grade
group by student_id;"""

# Make two changes to the pipeline:
# 1. Add a new view.
# 2. Modify the avg_grade view, extending its date range.
pipeline.modify(
    sql=gen_sql("2025-09-01", "2026-06-10") + additional_view
)

# Start the pipeline with await_approval bootstrap policy.
pipeline.start(bootstrap_policy=BootstrapPolicy.AWAIT_APPROVAL)
assert pipeline.status() == PipelineStatus.AWAITINGAPPROVAL

# When in the AwaitingApproval state, deployment_runtime_status_details shows
# changes between the current and the checkpointed version of the pipeline.
# Note: the avg_grade_enriched view is modified, as it depends on the modified avg_grade view.
diff = pipeline.deployment_runtime_status_details()

assert diff == {
    "added_input_connectors": [],
    "added_output_connectors": [],
    "modified_input_connectors": [],
    "modified_output_connectors": [],
    "program_diff": {
        "added_tables": [],
        "added_views": ["avg_grade_all_courses"],
        "modified_tables": [],
        "modified_views": ["avg_grade", "avg_grade_enriched"],
        "removed_tables": [],
        "removed_views": [],
    },
    "program_diff_error": None,
    "removed_input_connectors": [],
    "removed_output_connectors": []}

# Approve the changes and wait for the pipeline to complete bootstrapping new
# and modified views and reach the RUNNING state.
pipeline.approve()

pipeline.wait_for_status(PipelineStatus.RUNNING, timeout=300)

# The new outputs should reflect input data within the modified date range.
result = list(pipeline.query("SELECT * FROM avg_grade_enriched order by student_name, class"))

assert result == [
    {"student_name": "Alice", "class": "algebra", "class_avg": Decimal("96.00")},
    {"student_name": "Alice", "class": "physics", "class_avg": Decimal("88.00")},
    {"student_name": "Bob", "class": "algebra", "class_avg": Decimal("91.50")},
    {"student_name": "Bob", "class": "physics", "class_avg": Decimal("92.00")},
]

result = list(pipeline.query("SELECT * FROM avg_grade_all_courses order by student_id"))
assert result == [
    {"student_id": 1, "avg": Decimal("92.00")},
    {"student_id": 2, "avg": Decimal("91.75")},
]

Summary​

Pipeline modification with bootstrapping enables you to evolve your Feldera pipelines incrementally:

Key Benefits:

  • Modify SQL definitions without re-ingesting historical data
  • Add new views computed from existing state
  • Change multiple tables and views atomically
  • Review and approve changes before they take effect

Workflow:

  1. Stop the pipeline (state is automatically checkpointed)
  2. Modify the SQL code
  3. Restart with desired bootstrap_policy (default: await_approval)
  4. Review changes in deployment_runtime_status_details
  5. Approve changes via /approve endpoint (if using await_approval)
  6. Wait for bootstrapping to complete and pipeline to reach Running state
